Edition model
HYMER ML-T Xperience

121.600 €
Price froma)
2 - 3
Berths
674 cm
Length from
3.500 kg
Technically permissible maximum laden mass from*
222 cm
Width from
292 cm
Height from

a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.

*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.

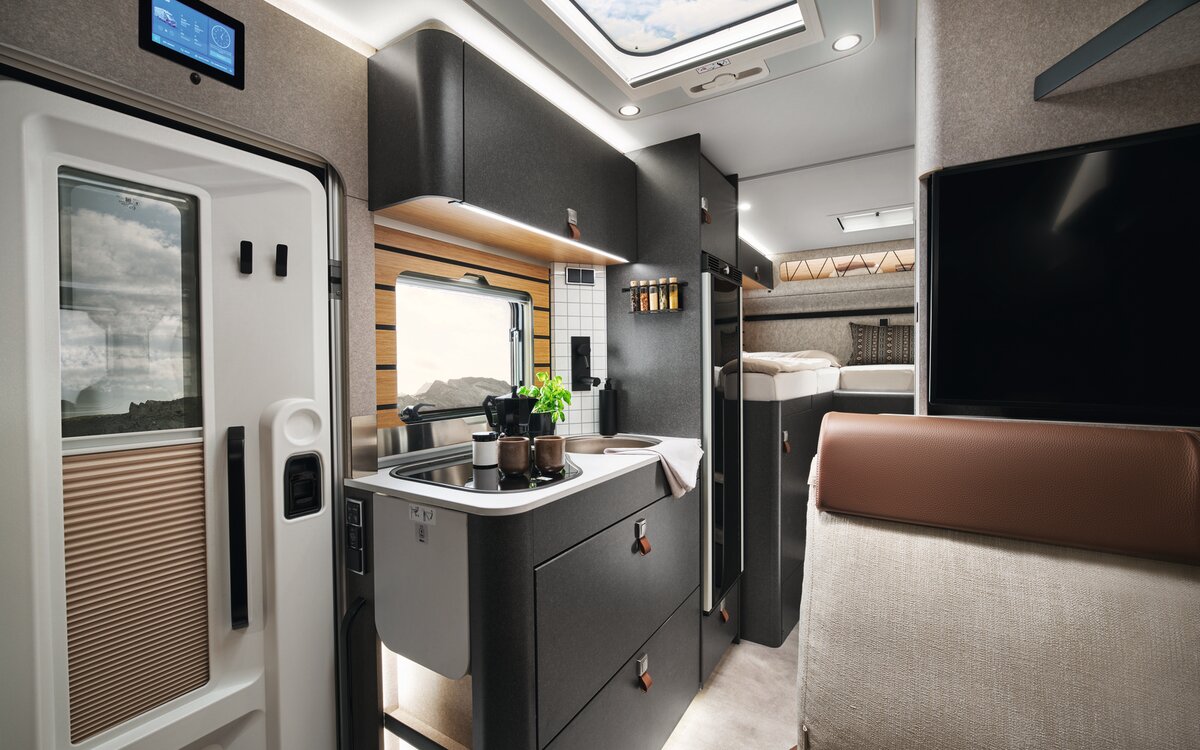

On the stove in the HYMER ML-T in the Velvet Ash style world, there is a pot. In front of it, partially visible, is the door, and above it is the HYMER Connect display.

Maximum xpertise. Full Xperience.

A lot of style with more equipment.

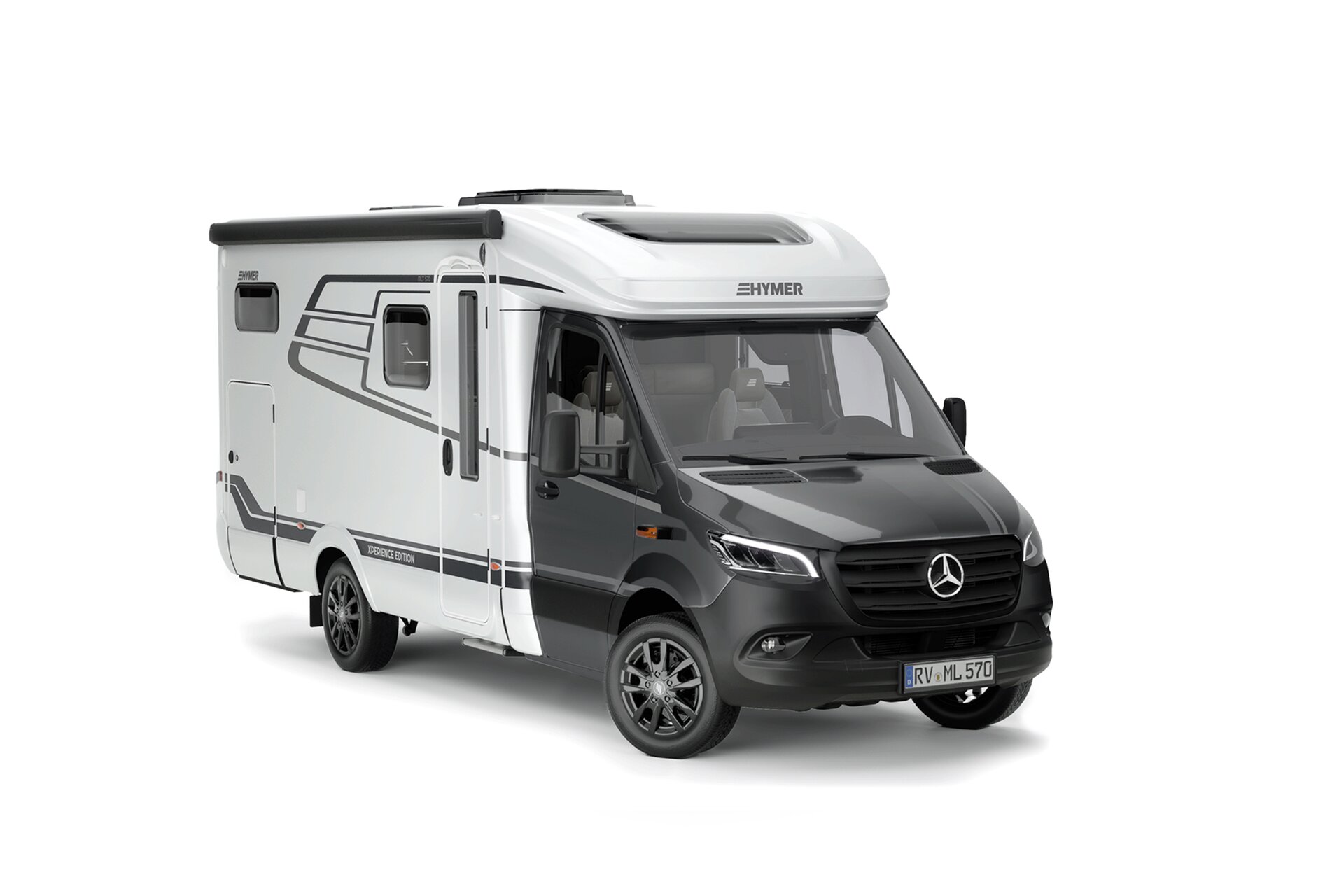

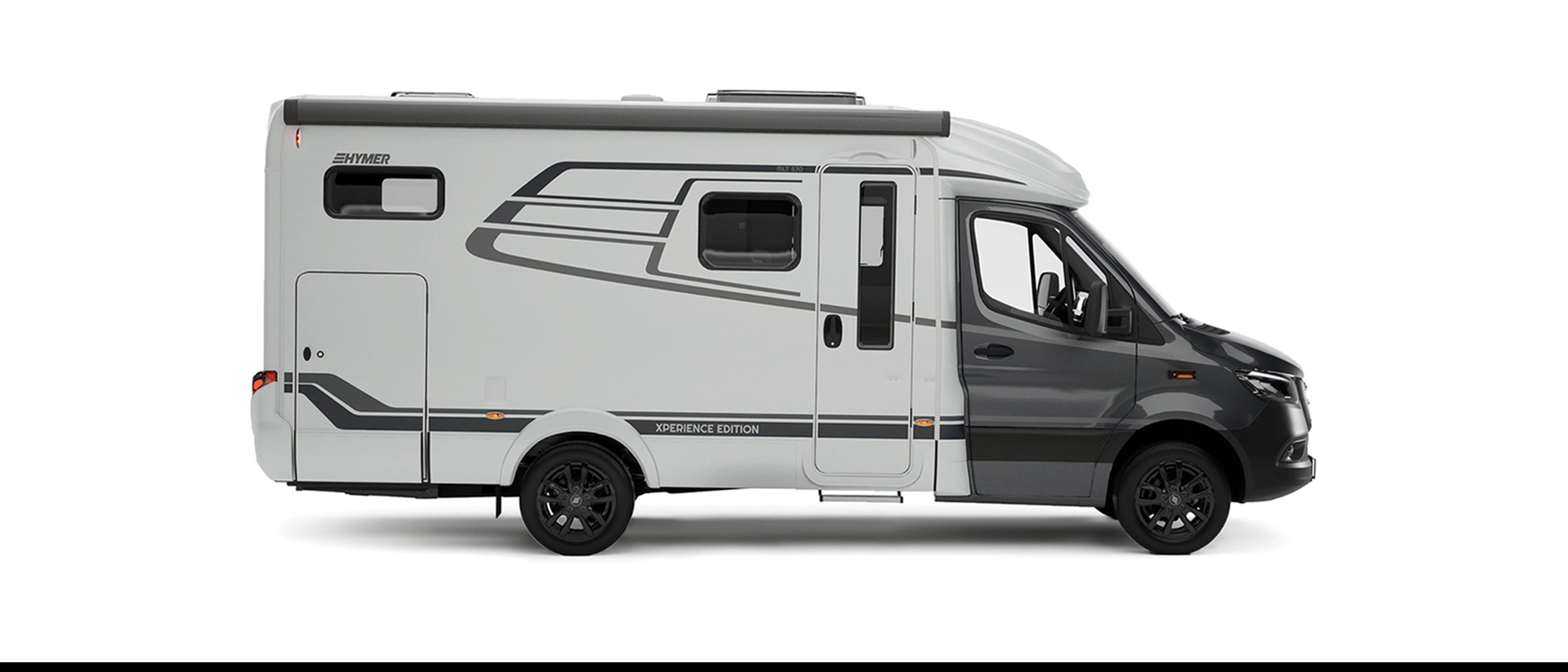

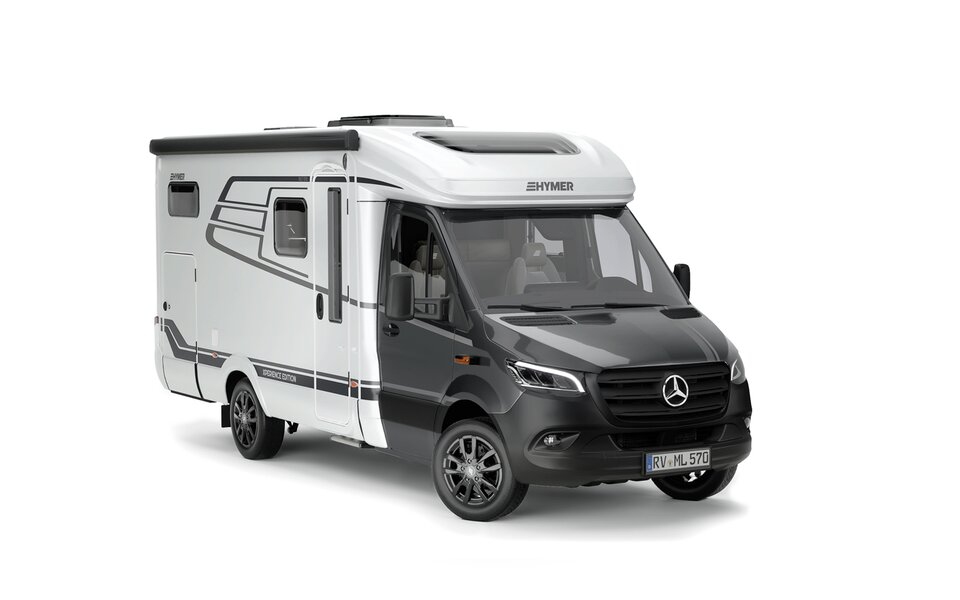

The partially integrated edition model Hymer ML-T Xperience based on the Mercedes-Benz sprinter combines exclusive aesthetics with full starting equipment at an attractive price.

Here, our expertise in terms of equipment and style meets spacious interior with compact external dimensions.
Product Manager Tabea B.

Design your vehicle in our configurator

In our configurator, you can design the HYMER ML-T Xperience to perfectly suit your taste. Discover all of the design variants and find your dream configuration.
To configurator

Xperience

Selected highlights

  • Driving comfort in series

    Enjoy incomparable driving comfort based on the 170 bhp Mercedes-Benz sprinter, equipped with the 9G-tronic automatic transmission, a 10.25-inch MBUX multimedia system including navigation and reversing camera as well as extensive assistance systems.

  • Independence XXL

    Experience absolute freedom on your journey-thanks to standard features such as the 6k-kW diesel warm air heating, the Hymer Smart Battery system with a state-of-the-art 80-am lifepo4 lithium battery, the generous 154-litre compressor fridge and a 93-litre fuel tank.

  • Powerful rear-wheel drive

    With first-class traction when accelerating, especially when the rear garage is loaded, an excellent weight distribution and savings with weight and fuel compared to all-wheel drive (oversight all-wheel drive approx. 150 kg), the Hymer ML-T Xperience offers the perfect synthesis of performance and efficiency.

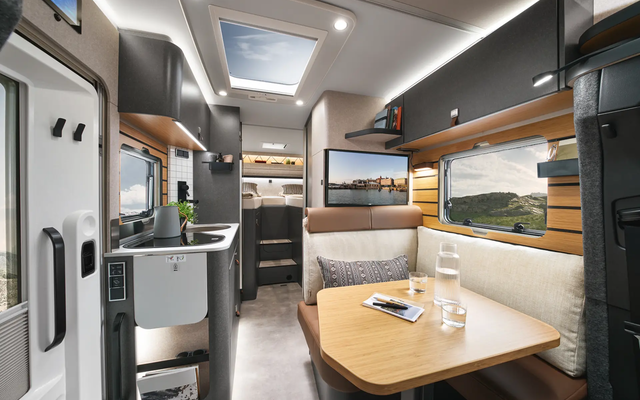

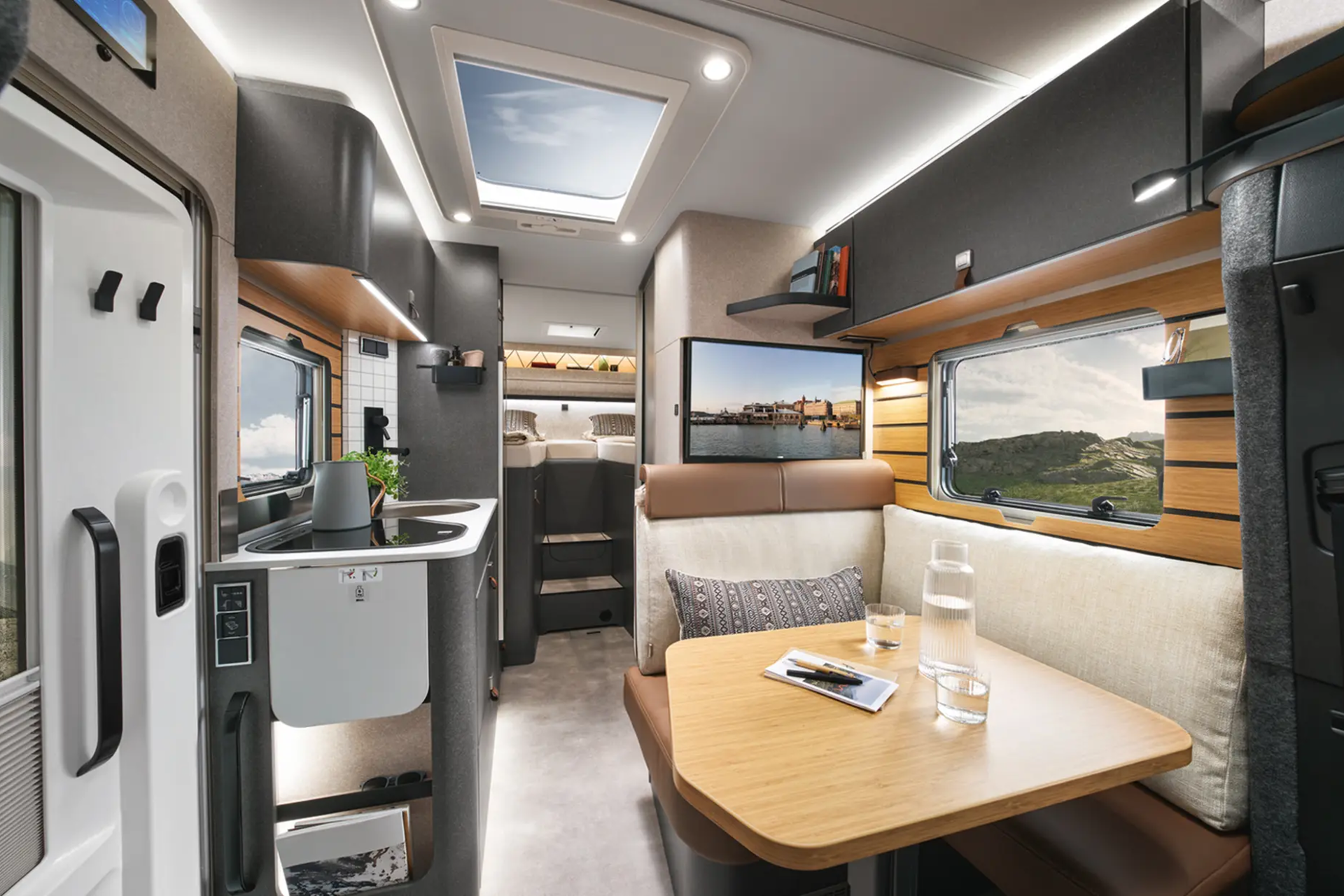

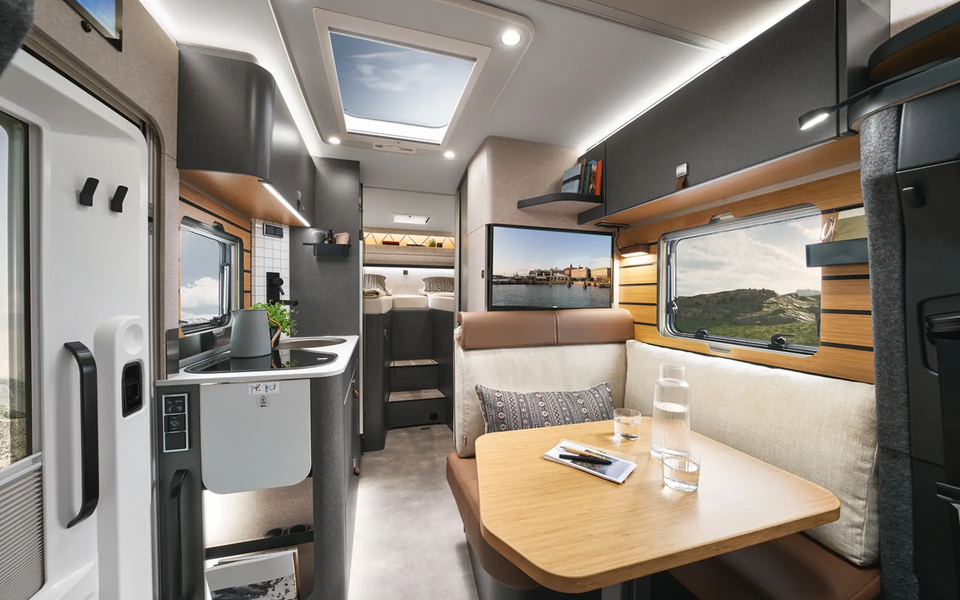

  • Style and comfort at the highest level

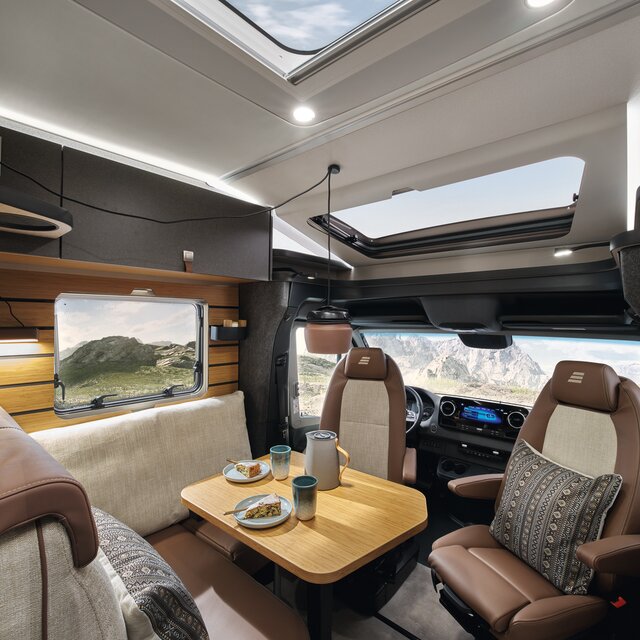

    Clear lines, the modern decor in native bamboo as well as clever and demanding details, bring you stylishly to every desired destination.

  • Full control at your finger tips

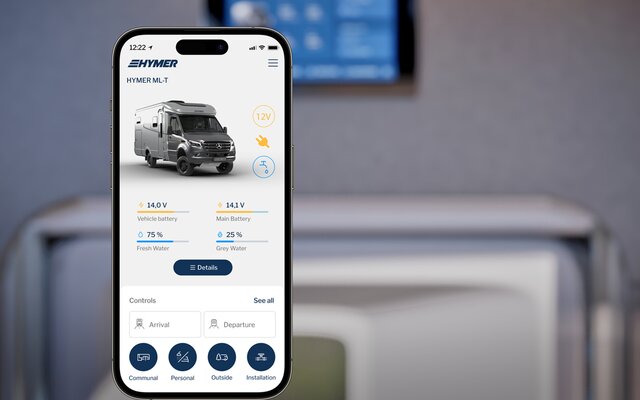

    With the Hymer Connect System as standard, you have all controllable living space functions under control at any time.

  • Independent heating

    The economical 6 kW diesel warm air heating with altitude kit ensures cozy warmth and a comfortable feeling of living away from busy paths and also over 1,500 meters.
1 / 3

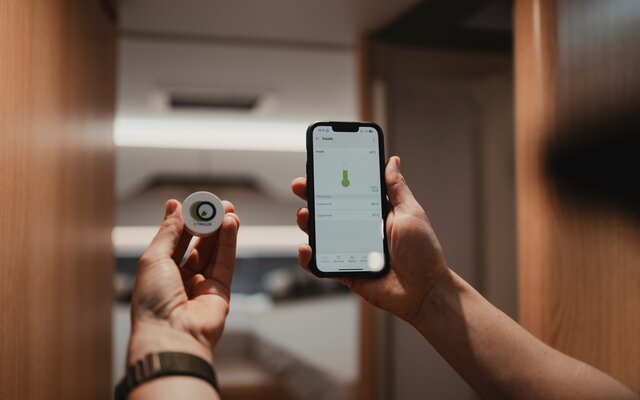

  • Hands of a person holding a temperature sensor in the left hand and a smartphone using the Connect app in the right hand measuring the current temperature, with the sleeping area of a motorhome blurred in the background

    Even more control

    The HYMER Connect sensor package, included as standard equipment, monitors the gas bottle fill level, alerts you if the temperature or humidity goes beyond set thresholds and actively warns you if windows or doors are left open.

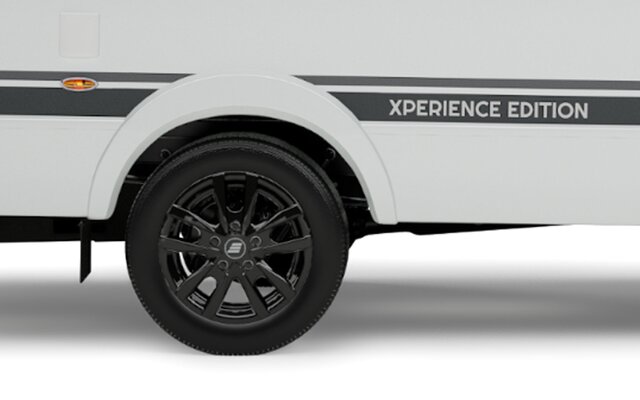

  • Sporty aesthetic with exclusive details

    The sporty design elements and exclusive Borbet rims featuring the HYMER logo lend the HYMER ML-T Xperience a dynamic and stylish appearance.

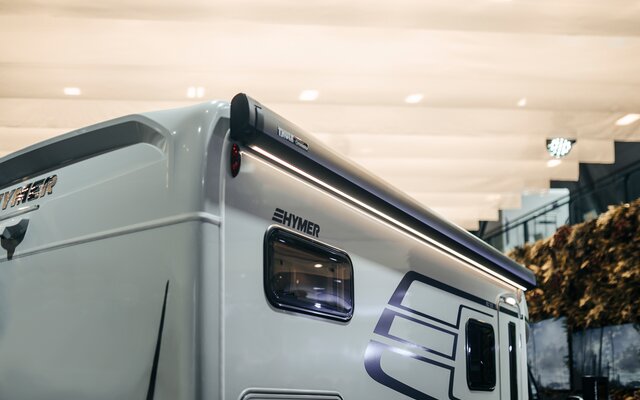

  • Black awning

    On the one hand, the 4 m long awning is a practical extension of living space and gives your Hymer ML-T Xperience a touch of wilderness chic.
1 / 3

A lot of equipment. Maximum price advantage.

Now secure the exclusive edition model Hymer ML-T Xperience with extensive off-road equipment-and benefit from an attractive price advantage.

Already made up your mind or still have some questions? Your HYMER partner will be only too happy to help.

Your local dealer

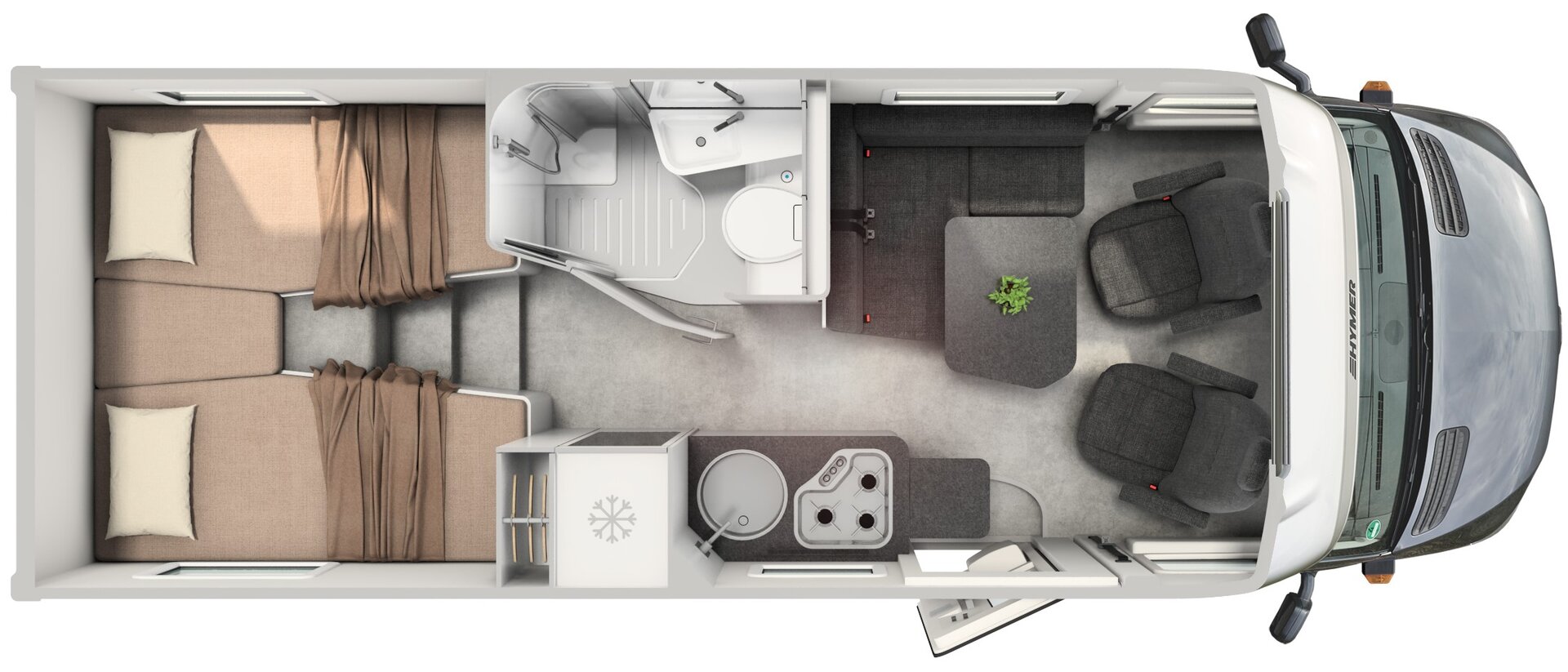

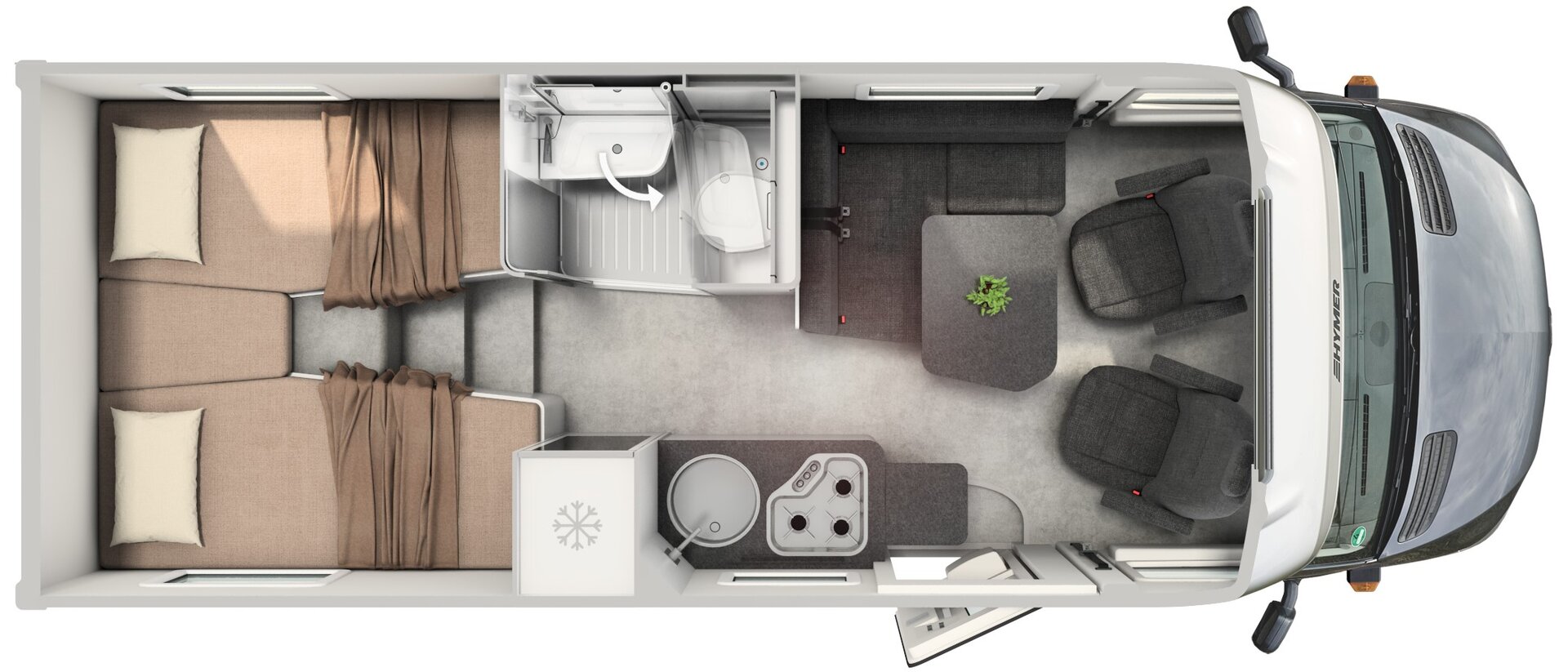

Available layouts (2)

  • Detailed view
    Edition model

    Detailed view

    Edition model

    HYMER ML-T 570 Xperience

    121.600 €
    Price froma)
    3
    Berths
    674 cm
    Length
    3.500 kg
    Technically permissible maximum laden mass from*
    222 cm
    Width
    292 cm
    Height
    Configure Technical data
    Edition model

    Important information regarding the selection of your motorhome

    When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
    Explanatory notes on the technically permissible maximum laden mass and the mass in running order.

    Explanatory notes on the permitted number of seats (including driver) and the manufacturer-specified mass for optional equipment.

    Explanatory notes on the additional weight of optional equipment and packages.

    Accept and continue
    Technical data
    HYMER ML-T 570 Xperience
    Description Value
    Price a)  121.600 €
    Standard chassis Mercedes-Benz Sprinter 417 CDI
    Drive Rear Wheel Drive
    kW (hp) 125 (170)
    Emission standards Euro VI-E
    Length / Width / Height (cm) 674 / 222 / 292
    Body width / Internal width (cm) 212 / 205
    Standing height in living area (cm) 198
    Wheelbase (mm) 3665
    Mass in running order (-/+ 5%) (kg)* 3047 (2895 - 3199)*
    Manufacturer-specified mass for optional equipment (kg)* 86
    Technically permissible maximum laden mass (kg)* 3500
    Technically permissible maximum towable mass (kg)* 2000
    Permitted number of seats (including driver)* 4
    Insulation Floor / Wall / Roof (mm) 41 / 34 / 34
    Overall clearance storage- / garage door W x H (cm) 75 x 121
    Bed dimension: Rear bed L x W (cm) 186 x 77 / 190 x 77
    Bed dimension: Central bed L x W (cm) 175 x 79
    Berths 3
    Bathroom W x D (cm) 105 x 83
    Wardrobe W x D x H (cm) 67 x 67 x 84
    Kitchen W x D x H (cm) 97 x 50 x 93
    Fridge volume (freezer compartment) (l) 154 (18)
    Standard heating Diesel warm air, 6 kW
    Gas bottle storage (Filling weight) 2x 6kg
    Total fresh water tank capacity (l) 120
    Fresh water tank in driving filling level (l) 20
    Waste water tank (l) 100
    Standard habitation battery 80 Ah (LFP)
    Sockets: 230 V/ 12 V/ USB 5 / 1 / 8
    a) This is a recommended retail price based on German retail prices. Prices in other countries may differ due to currency conversion and country-specific VAT, fees and import duties. For the latest information, please always enquire with a local dealer about the prices applicable in your country.

    * The specified mass in running order is a default value defined in the type-approval procedure. Due to manufacturing tolerances, the actual weighed mass in running order may deviate from the value stated above. Deviations of up to ± 5 % of the mass in running order are legally permissible and possible. The permissible range in kilograms is given in brackets after the mass in running order.  The manufacturer-specified mass for optional equipment is a calculated value for each type and layout that HYMER uses to determine the maximum weight available for factory-fitted optional equipment. The limitation of optional equipment is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by HYMER.  The real weight of your vehicle ex works can only be determined when it is weighed at the end of the line. If, in exceptional cases, the weighing shows that the actual load capacity falls below theminimum pay-mass despite limiting the optional equipment due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.  The technically permissible maximum laden mass of the vehicle and the technically permissible maximum mass on the axle must not be exceeded.
    Equipment & accessories
    Equipment & accessories
    HYMER ML-T 570 Xperience
    • Chassis / Weight variants
      Mercedes-Benz Sprinter 3.5 t - 417 CDI - 125 KW/170 hp - Euro VI-E
      Basis
      Exterior body color: White
      Mercedes-Benz Original ladder-type frame
      93 l fuel tank
      22 l AdBlue tank
      Electrically adjustable and heated exterior mirrors
      Electric cab windows and central locking for cab
      Daytime Running Light integrated in headlights
      Mud flaps, rear axle
      Reinforced front axle
      Trailer hitch pre-installation
      Heat-insulating glass with tinting strip on windscreen
      Shelf above windscreen
      Driver and passenger airbag
      ECO Start-Stop feature
      Electric parking brake
      Semi-automatic climate control TEMPMATIC
      Hinged lid for central storage compartment on the dashboard
      Keyless Start (start-stop button for comfortable engine start)
      Steering wheel, height and tilt adjustable
      Multifunctional steering wheel
      Open shelf cockpit passenger side
      Parameterisable special module for controlling retrofitted electronic add-on parts
      ABS (Anti-lock Brake System) / ASR (Anti-Slip Control) / EBV (Electric Brake Force Distribution) and ESP (Electric Stability Program)
      Active Brake Assist
      Active Lane Keeping Assist
      Attention Assist
      Automatic headlight control
      Hill Start Assist
      Intelligent Speed Assistant
      Rain sensor
      Crosswind Assist
      Cruise Control incl. steering wheel multifunction buttons
      Body
      Appealing, state-of-the-art exterior look with rounded design in smooth aluminum sheet
      Optimal PUAL Sandwich insulation alloy / alloy (34 mm wall and roof thickness)
      Electric entrance step, 1-step
      Exclusive HYMER Multifunctional rear lights in LED-Hybrid technology
      Garage load up to 350 kg (optional 450 kg). Please note the axle load.
      Large garage doors, LH and RH side
      Panoramic skylight above cab with integrative paneling, manually hinged
      GRP lightweight floor with XPS insulation (41 mm floor thickness)
      HYMER panoramic skylight 80 x 50 cm, double-glazed with LED lighting, living room
      Skylight (clear glass) above rear bed(s) with blackout blind and mosquito net, 40 x 40 cm
      Outfitting
      Integrative cladding of the habitation door
      All overhead lockers with Soft-Close feature
      Comfort push locks with genuine leather loops on flaps and drawers
      Open shelf above cab
      Wall panel with multifunctional rail system in the entrance area and the seating group for multiple use
      Mosquito net on habitation door
      Cab blinds

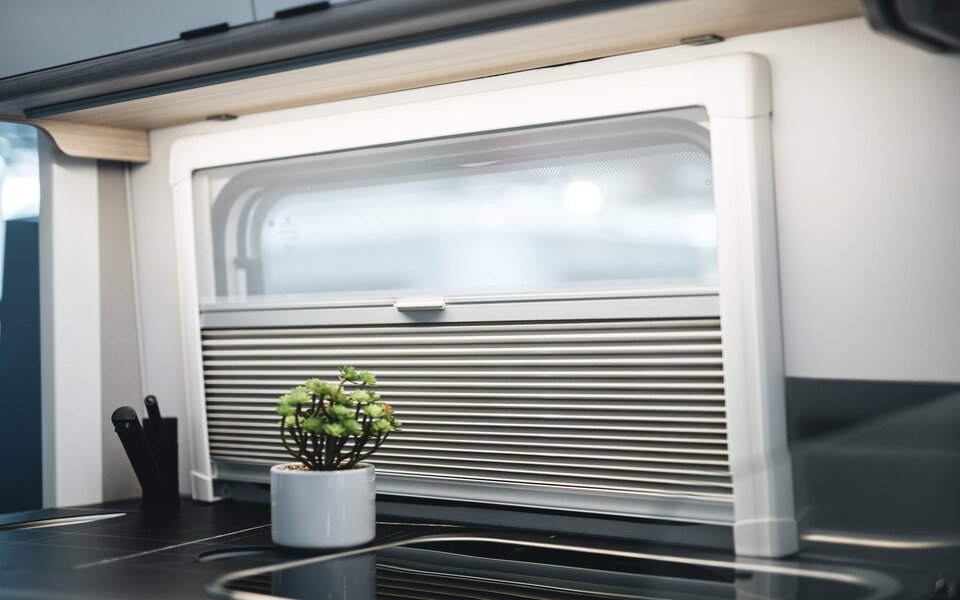

      Flyscreen and blackout blinds on all windows (in the body construction)
      Lashing rails in the garage for load securing
      Living and bedroom + lighting

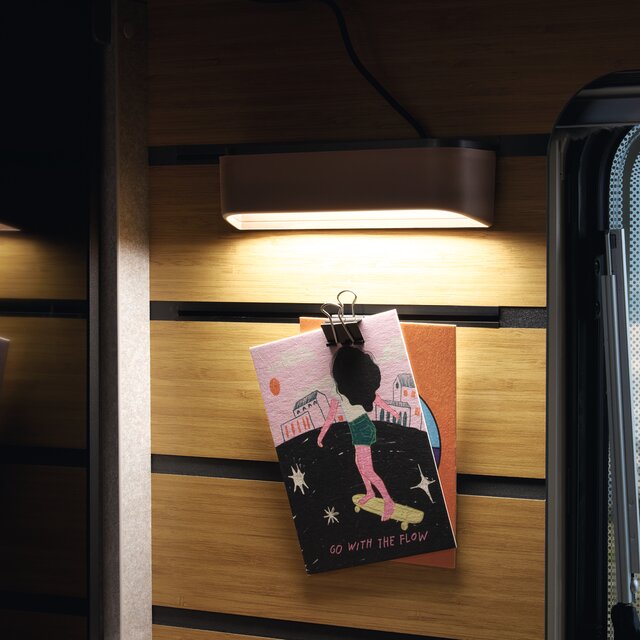

      Multifunctional rail system on both sides in the sleeping area for versatile use
      Open shelf entrance element with stylish Coming Home lighting and additional storage space
      Open compartment in the sleeping area incl. rubber strap
      Partitioning curtain between bed- and living room
      Complete LED interior lighting incl. night light
      LED gooseneck lights above cab incl. USB socket
      LED awning light
      Kitchen
      Extra wide kitchen drawers incl. cutlery tray and Servo Soft feature
      Kitchen wall paneling
      Multifunctional rail for individual use in the kitchen

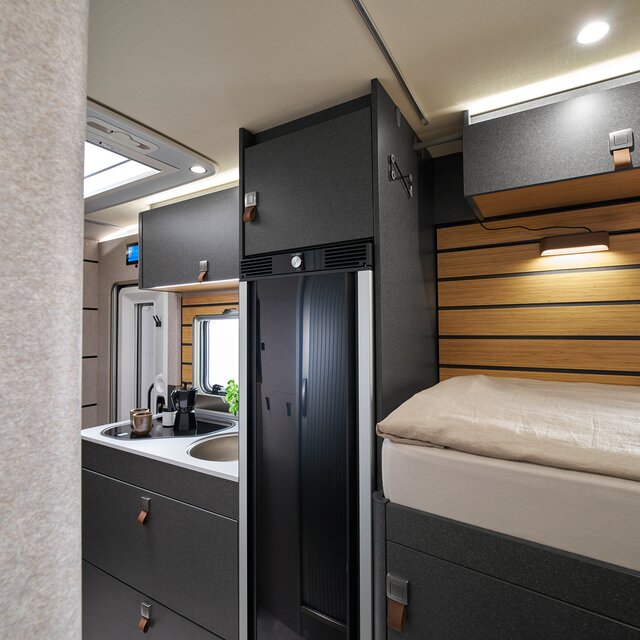

      154 l compressor fridge with two-way opening and removable freezer compartment (18 l)

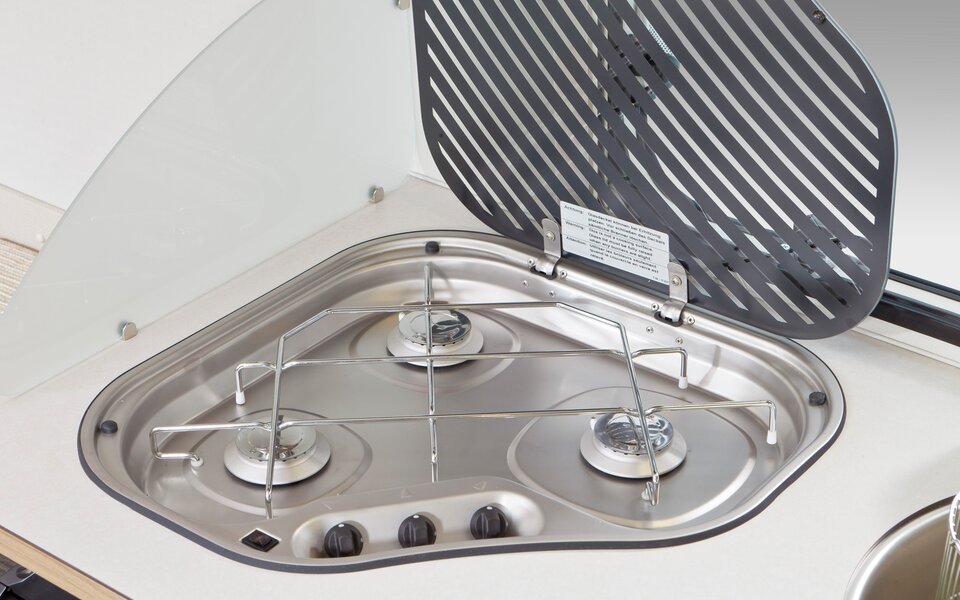

      3-burner gas cooker with ignition fuse, electric ignition, flame guard and glass cover
      8 l waste bin in kitchen drawer (can also be flexibly hung on drawer)
      Black matt water tap on high-class wall with tile optics

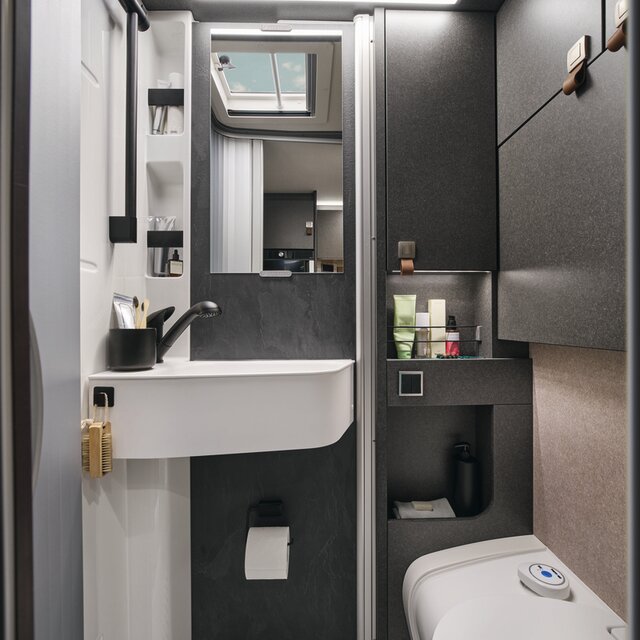

      Bathroom
      Variable bathroom with swivel wall, roller door and black matt fittings
      Skylight (frosted glass) above shower with blackout blind, mosquito net as well as integrated clothes rail, 40 x 40 cm
      Bench toilet with level indicator and cassette on wheels
      Toothbrush cup incl. bracket
      Installation & Technology
      6 kW diesel warm air heating with 10 l warm water boiler as well as atmospheric pressure sensor (altitude kit)
      Gas bottle compartment with access via the external flap / door
      HYMER Connect to control and monitor smart vehicle features via the HYMER Connect App.
      7" touch display for convenient control and monitoring of smart vehicle features

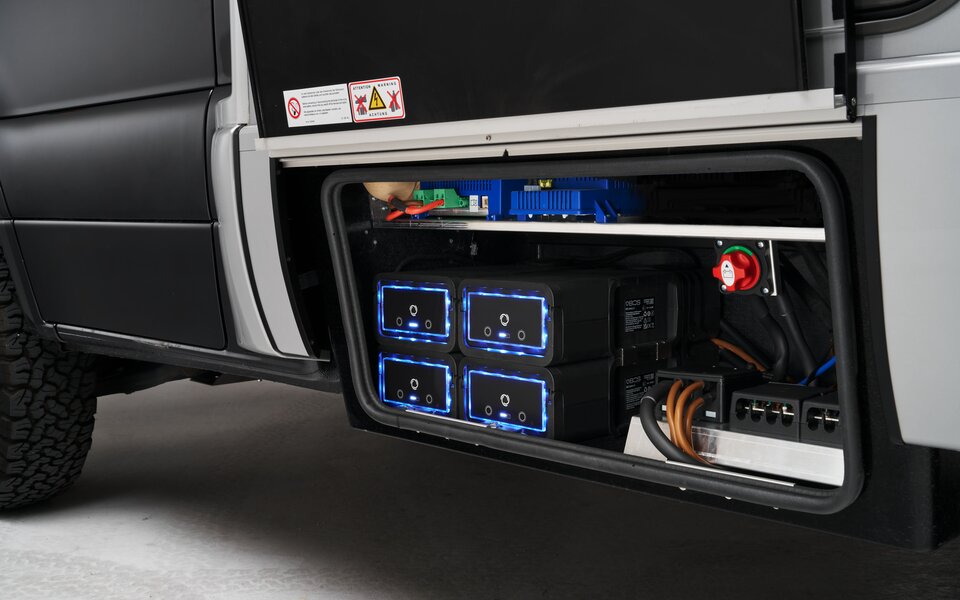

      HYMER Smart Battery System 2.0: Habitation battery module - 80 Ah LFP (overall capacity 80 Ah)
      Charging booster for safe charging of the habitation battery while driving (up to 70 A)
      120 l fresh water tank, insulated and heated (20 l in driving position)
      100 l waste water tank, insulated and heated
      Electric waste water drainage
      Multimedia
      Radio / TV pre-installation incl. 12 V socket, 2 speakers in the cab, 2 speakers in the alcove, radio and DVB-T2 antenna
      Fabrics & Furniture finishes
      Furniture finish: Native Bamboo

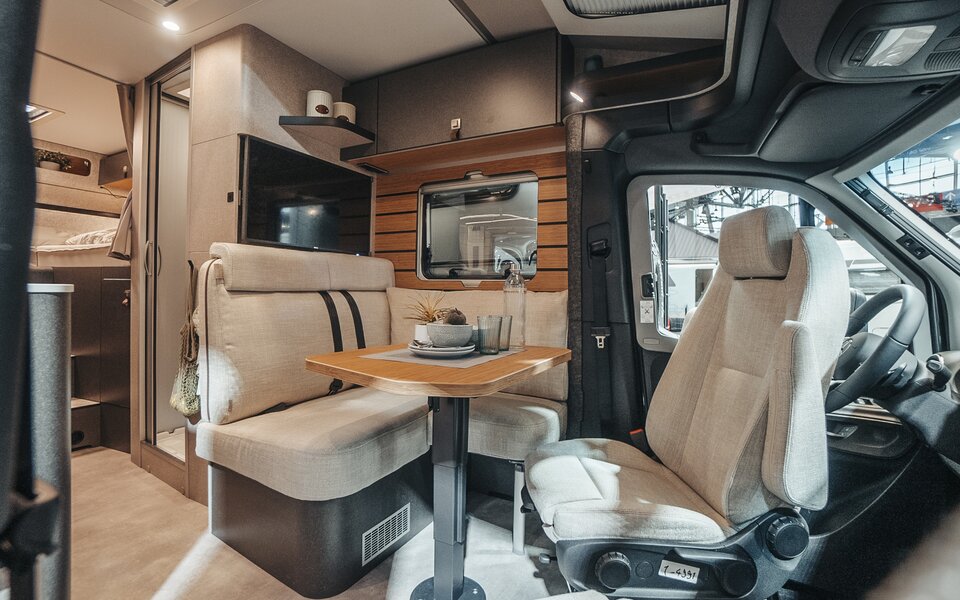

      Fabric combination: Indiana
      Packages
      Xperience package ML-T
    • Chassis / Weight variants
      Mercedes-Benz Sprinter 3.5 t - 419 CDI - 140 KW/190 hp - Euro VI-E
      Weight variant 3,880 kg (Mercedes-Benz Sprinter 415 / 417 / 419 CDI only)
      Weight variant 4,100 kg (Mercedes-Benz Sprinter 415 / 417 / 419 CDI only)
      Basis
      Weight saving with x19 engine and automatic transmission (- 9 kg)
      Illuminated driver and passenger exit
      Mercedes-Benz engine compartment insulation for noise reduction
      Wet Wiper System (windscreen wiper with integrated spray nozzles)
      Heated windscreen
      LED High-Performance headlights
      Central locking for cab, habitation as well as garage doors
      Shelf for smartphones incl. wireless charging with charge level indicator
      Cupholder instead of storage compartment
      Fully automatic climate control THERMOTRONIC
      Dashboard charging pack (2 USB-C connections with 5 V as well as one additional 12 V socket)
      Seat heating and lumbar support for Original Mercedes-Benz seats
      High Beam Assist
      Warm air auxiliary heating, electric
      Auxiliary heating (supports heating when heating up the vehicle)
      Heat insulating cab
      Steering wheel heating
      Body
      Trailer hitch (detachable ball head)
      Roof rack with rear ladder (black)
      Roof rack with rear ladder (black) and checker plate roof panel
      GRP roof coating
      Comfort jacks, rear (2 units)
      Frame extension incl. 450 kg garage load
      Security lock for habitation door
      Bicycle rack for two bicycles, manually lowerable, max. load 50 kg
      Bicycle rack for 4 bicycles, max. load: 60 kg
      Electric roof vent with function supply and exhaust air at kitchen
      HYMER panoramic skylight 80 x 50 cm, double-glazed, rear bedroom
      Outfitting
      Felt trim in the rear garage
      Checker plate floor in the rear garage
      Insulated partitioning curtain for cab, double-layered sewn
      External shower, located in garage
      Insulating mat for cab footwell, supplied loose
      Living and bedroom + lighting
      Fitted sheets made to measure for rear beds individually adapted to mattress
      Ambient light system: Multiple level light system with dynamic and individual control of the illumination (incl. light temperature) as well as atmospheric base illumination

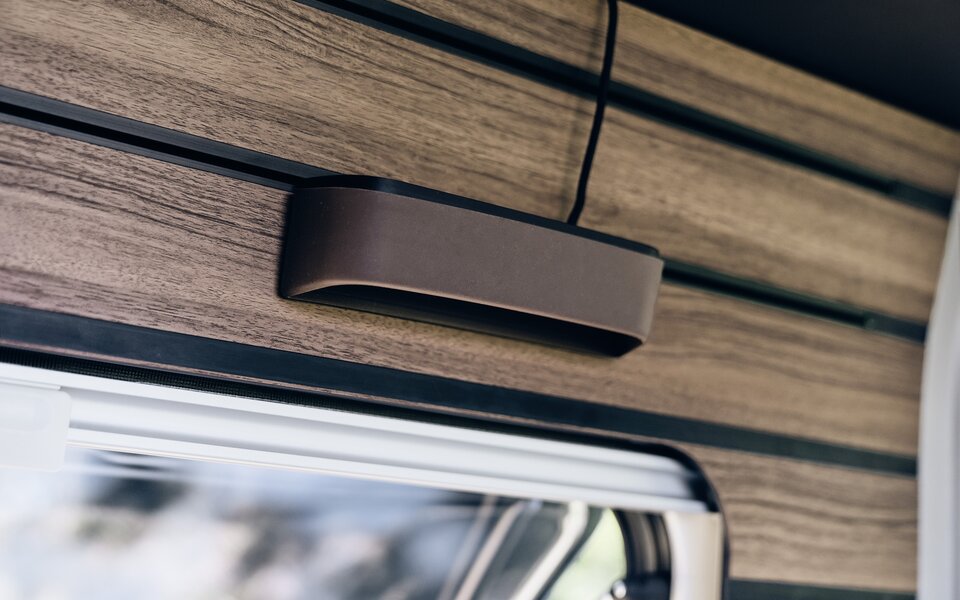

      Light package (Multifunctional pendant light as well as 1 ambient reading light for multifunctional walls)
      Kitchen
      Separate oven above fridge
      Bathroom
      Shower duck board for level walking floor
      Second toilet cassette incl. bracket located in external storage compartment
      Installation & Technology
      1,800 W electric bar heater (for 6 kW Diesel warm air heating)
      Gas-Warm water heating incl. floor and garage floor heating
      Gas bottle slide out
      Automatic gas bottle changeover system with crash sensor and IceEx
      Gas filter for automatic gas bottle changeover
      External gas socket with shut-off valve
      HYMER Smart Battery System 2.0 - extension: 2nd habitation battery module 80 Ah LFP incl. additional charger (160 Ah overall capacity)
      HYMER Smart Battery System 2.0 - extension: 3rd habitation battery module 80 Ah LFP (overall capacity 240 Ah)
      HYMER Smart Battery System 2.0 - extension: 3rd & 4th habitation battery module - 2 x 80 Ah LFP (overall capacity 320 Ah)
      Solar panel with solar charge controller (MPPT) and display, 2 x 95 W
      Additional sockets: 3 x 230 V / 1 x 12 V
      Water filter for fresh water system
      Roof AirCon, 2,400 W
      Toilet vent
      Heat exchanger pre-installation, Mercedes-Benz
      Heat exchanger for warm water heating
      Inverter 12 V to 230 V, 1,800 W with network priority circuit
      Multimedia
      Second LED-TV in the bedroom, 22" TV with built-in speakers, DVD drive, DVB-T / C, DVB-S2, wiring as well as wall bracket
      Digital flat antenna, without receiver
      Digital satellite dish, 80 cm, without receiver
      Digital satellite dish, 80 cm, Twin LNB
      Fabrics & Furniture finishes
      Fabric combination: Gomera
      Textile leather-/ fabric combination: Marquis
      Leather / fabric combination: Moreno
      Leather-/ Fabric combination: Tenerife
      Leather: Grigio
      Carpet: Laguna
      Packages
      Equipment Line Premium
      Autonomy package Lithium XL
      Arctic package
      Winter package
      TÜV approval / CoC
      TÜV approval / CoC
      Hymer Original Services
      12 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to
      24 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to
      36 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to
      Hymer Original Parts
      Replacement cartridge for water filter
      Herb pot
      Spice rack
      Tablet holder
      Parkpilot - rear parking aid
      Aluminum louvre cassette for panorama tilting skylight, 80 x50 cm
      Kitchen roll holder
      E-Bike Charger
      Bike Carrier for two bikes
      Universal shelf
      Temperatur- und Luftfeuchtigkeitssensor
      Kontaktsensor
      Reifendrucksensor
      Gaslevelsensor
      Stahladapter für Alu-Gasflaschen
      Sun protection mat
      External insulation
      Cot
      Seat console safe passenger seat
    • Xperience package ML-T
      Exterior cab color: Tenorite gray (Metallic)
      Awning incl. dimmable LED lights, black housing, 400 x 250 cm
      Active Distance Assist DISTRONIC+ incl. steering wheel multifunction buttons
      Comfort L-shaped seating group with lounge cushions, longitudinal / transverse sliding table and 2 built-in 3-point belts
      Design graphics Xperience
      Fog lights with cornering light
      Traffic Sign Assist
      Bed conversion for comfort L-shaped seating group incl. additional cushion and lowerable table involving the cab seat
      Sleeping system with cup-slatted bed frame for rear bed(s)
      Additional cushion between the longitudinal single beds incl. integrated comfort access
      4 cushions
      32" TV bracket

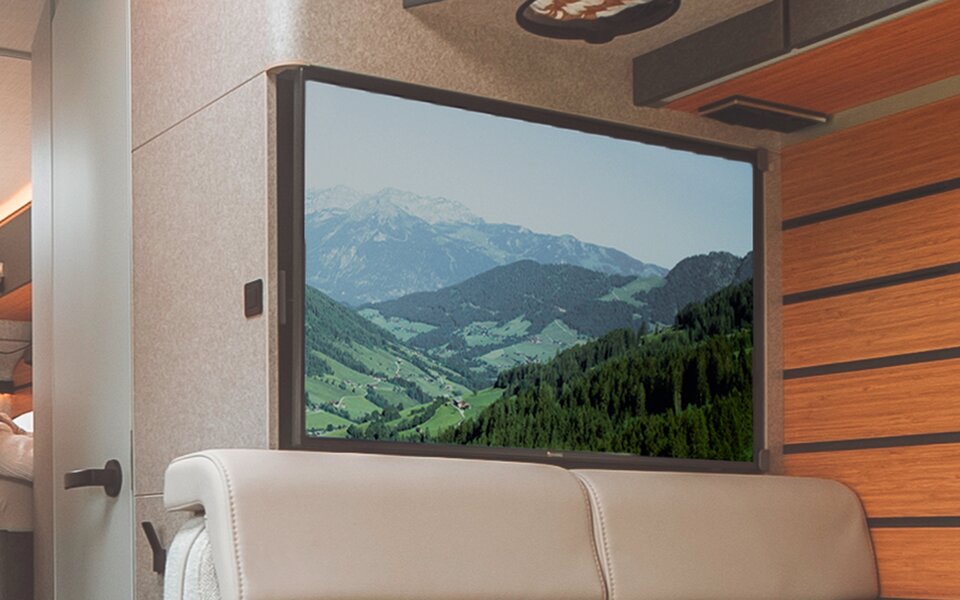

      32" Smart LED-TV with built-in speakers, remote control, DVD drive, HYMER Smart-Multimedia system (DVB-T / C, DVB-S2) incl. receiver
      10.25" MBUX Multimedia system with reversing camera, Voice Control, touchscreen incl. SatNav and smartphone integration
      HYMER Connect sensor package incl. 1x gas level sensor, 1x temperature sensor and 2x contact sensor
      Comfort habitation door with window, blackout blind, integrated waste bin as well as 2-way lock
      16'' Alloy rims (black) with All Season tires
      Leather steering wheel (automatic transmission only)
      9G-TRONIC automatic transmission incl. Hold function
      DAB Radio

    a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.

    *The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
    Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.


  • Detailed view
    Edition model

    Detailed view

    Edition model

    HYMER ML-T 580 Xperience

    122.700 €
    Price froma)
    2 - 3
    Berths
    698 cm
    Length
    3.500 kg
    Technically permissible maximum laden mass from*
    222 cm
    Width
    292 cm
    Height
    Configure Technical data
    Edition model

    Important information regarding the selection of your motorhome

    When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
    Explanatory notes on the technically permissible maximum laden mass and the mass in running order.

    Explanatory notes on the permitted number of seats (including driver) and the manufacturer-specified mass for optional equipment.

    Explanatory notes on the additional weight of optional equipment and packages.

    Accept and continue
    Technical data
    HYMER ML-T 580 Xperience
    Description Value
    Price a)  122.700 €
    Standard chassis Mercedes-Benz Sprinter 417 CDI
    Drive Rear Wheel Drive
    kW (hp) 125 (170)
    Emission standards Euro VI-E
    Length / Width / Height (cm) 698 / 222 / 292
    Body width / Internal width (cm) 212 / 205
    Standing height in living area (cm) 198
    Wheelbase (mm) 3665
    Mass in running order (-/+ 5%) (kg)* 3073 (2919 - 3227)*
    Manufacturer-specified mass for optional equipment (kg)* 62
    Technically permissible maximum laden mass (kg)* 3500
    Technically permissible maximum towable mass (kg)* 2000
    Permitted number of seats (including driver)* 4
    Insulation Floor / Wall / Roof (mm) 41 / 34 / 34
    Overall clearance storage- / garage door W x H (cm) 100 x 121
    Bed dimension: Rear bed L x W (cm) 191 x 77 / 192 x 77 / 214 x 77
    Bed dimension: Central bed L x W (cm) 175 x 79
    Berths 2 - 3
    Bathroom W x D (cm) 125 x 86
    Wardrobe W x D x H (cm) 22 x 55 x 180 / 67 x 67 x 84
    Kitchen W x D x H (cm) 97 x 50 x 93
    Fridge volume (freezer compartment) (l) 154 (18)
    Standard heating Diesel warm air, 6 kW
    Gas bottle storage (Filling weight) 2x 6kg
    Total fresh water tank capacity (l) 120
    Fresh water tank in driving filling level (l) 20
    Waste water tank (l) 100
    Standard habitation battery 80 Ah (LFP)
    Sockets: 230 V/ 12 V/ USB 5 / 1 / 8
    a) This is a recommended retail price based on German retail prices. Prices in other countries may differ due to currency conversion and country-specific VAT, fees and import duties. For the latest information, please always enquire with a local dealer about the prices applicable in your country.

    * The specified mass in running order is a default value defined in the type-approval procedure. Due to manufacturing tolerances, the actual weighed mass in running order may deviate from the value stated above. Deviations of up to ± 5 % of the mass in running order are legally permissible and possible. The permissible range in kilograms is given in brackets after the mass in running order.  The manufacturer-specified mass for optional equipment is a calculated value for each type and layout that HYMER uses to determine the maximum weight available for factory-fitted optional equipment. The limitation of optional equipment is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by HYMER.  The real weight of your vehicle ex works can only be determined when it is weighed at the end of the line. If, in exceptional cases, the weighing shows that the actual load capacity falls below theminimum pay-mass despite limiting the optional equipment due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.  The technically permissible maximum laden mass of the vehicle and the technically permissible maximum mass on the axle must not be exceeded.
    Equipment & accessories
    Equipment & accessories
    HYMER ML-T 580 Xperience
    • Chassis / Weight variants
      Mercedes-Benz Sprinter 3.5 t - 417 CDI - 125 KW/170 hp - Euro VI-E
      Basis
      Exterior body color: White
      Mercedes-Benz Original ladder-type frame
      93 l fuel tank
      22 l AdBlue tank
      Electrically adjustable and heated exterior mirrors
      Electric cab windows and central locking for cab
      Daytime Running Light integrated in headlights
      Mud flaps, rear axle
      Reinforced front axle
      Trailer hitch pre-installation
      Heat-insulating glass with tinting strip on windscreen
      Shelf above windscreen
      Driver and passenger airbag
      ECO Start-Stop feature
      Electric parking brake
      Semi-automatic climate control TEMPMATIC
      Hinged lid for central storage compartment on the dashboard
      Keyless Start (start-stop button for comfortable engine start)
      Steering wheel, height and tilt adjustable
      Multifunctional steering wheel
      Open shelf cockpit passenger side
      Parameterisable special module for controlling retrofitted electronic add-on parts
      ABS (Anti-lock Brake System) / ASR (Anti-Slip Control) / EBV (Electric Brake Force Distribution) and ESP (Electric Stability Program)
      Active Brake Assist
      Active Lane Keeping Assist
      Attention Assist
      Automatic headlight control
      Hill Start Assist
      Intelligent Speed Assistant
      Rain sensor
      Crosswind Assist
      Cruise Control incl. steering wheel multifunction buttons
      Body
      Appealing, state-of-the-art exterior look with rounded design in smooth aluminum sheet
      Optimal PUAL Sandwich insulation alloy / alloy (34 mm wall and roof thickness)
      Electric entrance step, 1-step
      Exclusive HYMER Multifunctional rear lights in LED-Hybrid technology
      Garage load up to 350 kg (optional 450 kg). Please note the axle load.
      Large garage doors, LH and RH side
      Panoramic skylight above cab with integrative paneling, manually hinged
      GRP lightweight floor with XPS insulation (41 mm floor thickness)
      HYMER panoramic skylight 80 x 50 cm, double-glazed with LED lighting, living room
      Skylight (clear glass) above rear bed(s) with blackout blind and mosquito net, 40 x 40 cm
      Outfitting
      Integrative cladding of the habitation door
      All overhead lockers with Soft-Close feature
      Comfort push locks with genuine leather loops on flaps and drawers
      Open shelf above cab
      Wall panel with multifunctional rail system in the entrance area and the seating group for multiple use
      Mosquito net on habitation door
      Cab blinds
      Flyscreen and blackout blinds on all windows (in the body construction)
      Lashing rails in the garage for load securing
      Living and bedroom + lighting
      Multifunctional rail system on both sides in the sleeping area for versatile use
      Open shelf entrance element with stylish Coming Home lighting and additional storage space
      Open compartment in the sleeping area incl. rubber strap
      Partitioning curtain between bed- and living room
      Complete LED interior lighting incl. night light
      LED gooseneck lights above cab incl. USB socket
      LED awning light
      Kitchen
      Extra wide kitchen drawers incl. cutlery tray and Servo Soft feature
      Kitchen wall paneling
      Multifunctional rail for individual use in the kitchen
      154 l compressor fridge with two-way opening and removable freezer compartment (18 l)
      3-burner gas cooker with ignition fuse, electric ignition, flame guard and glass cover
      8 l waste bin in kitchen drawer (can also be flexibly hung on drawer)
      Black matt water tap on high-class wall with tile optics
      Bathroom
      Comfort bathroom with black matt fittings
      Skylight (frosted glass) above shower with blackout blind, mosquito net as well as integrated clothes rail, 40 x 40 cm
      Bench toilet with level indicator and cassette on wheels
      Toothbrush cup incl. bracket
      Installation & Technology
      6 kW diesel warm air heating with 10 l warm water boiler as well as atmospheric pressure sensor (altitude kit)
      Gas bottle compartment with access via the external flap / door
      HYMER Connect to control and monitor smart vehicle features via the HYMER Connect App.
      7" touch display for convenient control and monitoring of smart vehicle features
      HYMER Smart Battery System 2.0: Habitation battery module - 80 Ah LFP (overall capacity 80 Ah)
      Charging booster for safe charging of the habitation battery while driving (up to 70 A)
      120 l fresh water tank, insulated and heated (20 l in driving position)
      100 l waste water tank, insulated and heated
      Electric waste water drainage
      Multimedia
      Radio / TV pre-installation incl. 12 V socket, 2 speakers in the cab, 2 speakers in the alcove, radio and DVB-T2 antenna
      Fabrics & Furniture finishes
      Furniture finish: Native Bamboo
      Fabric combination: Indiana
      Packages
      Xperience package ML-T
    • Chassis / Weight variants
      Mercedes-Benz Sprinter 3.5 t - 419 CDI - 140 KW/190 hp - Euro VI-E
      Weight variant 3,880 kg (Mercedes-Benz Sprinter 415 / 417 / 419 CDI only)
      Weight variant 4,100 kg (Mercedes-Benz Sprinter 415 / 417 / 419 CDI only)
      Basis
      Weight saving with x19 engine and automatic transmission (- 9 kg)
      Illuminated driver and passenger exit
      Mercedes-Benz engine compartment insulation for noise reduction
      Wet Wiper System (windscreen wiper with integrated spray nozzles)
      Heated windscreen
      LED High-Performance headlights
      Central locking for cab, habitation as well as garage doors
      Shelf for smartphones incl. wireless charging with charge level indicator
      Cupholder instead of storage compartment
      Fully automatic climate control THERMOTRONIC
      Dashboard charging pack (2 USB-C connections with 5 V as well as one additional 12 V socket)
      Seat heating and lumbar support for Original Mercedes-Benz seats
      High Beam Assist
      Warm air auxiliary heating, electric
      Auxiliary heating (supports heating when heating up the vehicle)
      Heat insulating cab
      Steering wheel heating
      Body
      Trailer hitch (detachable ball head)
      Roof rack with rear ladder (black)
      Roof rack with rear ladder (black) and checker plate roof panel
      GRP roof coating
      Comfort jacks, rear (2 units)
      Frame extension incl. 450 kg garage load
      Security lock for habitation door
      Bicycle rack for two bicycles, manually lowerable, max. load 50 kg
      Bicycle rack for 4 bicycles, max. load: 60 kg
      Electric roof vent with function supply and exhaust air at kitchen
      HYMER panoramic skylight 80 x 50 cm, double-glazed, rear bedroom
      Outfitting
      Felt trim in the rear garage
      Checker plate floor in the rear garage
      Insulated partitioning curtain for cab, double-layered sewn
      External shower, located in garage
      Insulating mat for cab footwell, supplied loose
      Living and bedroom + lighting
      Fitted sheets made to measure for rear beds individually adapted to mattress
      Bed extension passenger side (+ 22 cm) and half-height wardrobe (instead of floor-to-ceiling wardrobe)

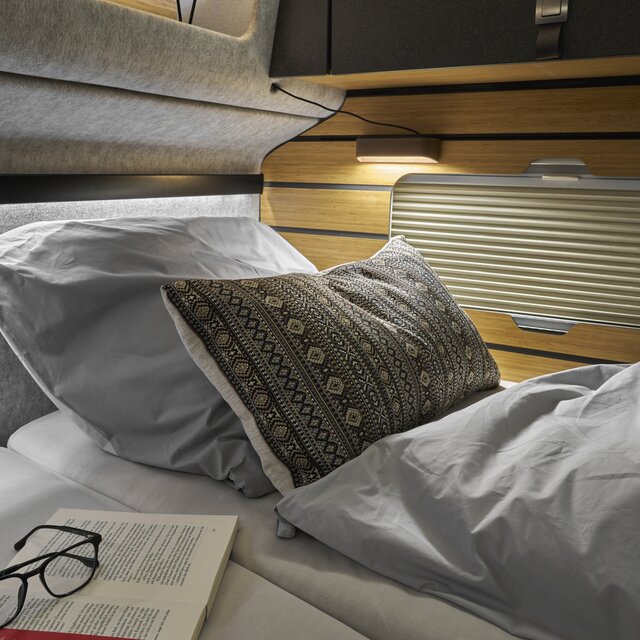

      Ambient light system: Multiple level light system with dynamic and individual control of the illumination (incl. light temperature) as well as atmospheric base illumination
      Light package (Multifunctional pendant light as well as 1 ambient reading light for multifunctional walls)
      Kitchen
      Separate oven above fridge
      Bathroom
      Shower duck board for level walking floor
      Second toilet cassette incl. bracket located in external storage compartment
      Installation & Technology
      1,800 W electric bar heater (for 6 kW Diesel warm air heating)
      Gas-Warm water heating incl. floor and garage floor heating
      Gas bottle slide out
      Automatic gas bottle changeover system with crash sensor and IceEx
      Gas filter for automatic gas bottle changeover
      External gas socket with shut-off valve
      HYMER Smart Battery System 2.0 - extension: 2nd habitation battery module 80 Ah LFP incl. additional charger (160 Ah overall capacity)
      HYMER Smart Battery System 2.0 - extension: 3rd habitation battery module 80 Ah LFP (overall capacity 240 Ah)
      HYMER Smart Battery System 2.0 - extension: 3rd & 4th habitation battery module - 2 x 80 Ah LFP (overall capacity 320 Ah)
      Solar panel with solar charge controller (MPPT) and display, 2 x 95 W
      Additional sockets: 3 x 230 V / 1 x 12 V
      Water filter for fresh water system
      Roof AirCon, 2,400 W
      Toilet vent
      Heat exchanger pre-installation, Mercedes-Benz
      Heat exchanger for warm water heating
      Inverter 12 V to 230 V, 1,800 W with network priority circuit
      Multimedia
      Second LED-TV in the bedroom, 22" TV with built-in speakers, DVD drive, DVB-T / C, DVB-S2, wiring as well as wall bracket
      Digital flat antenna, without receiver
      Digital satellite dish, 80 cm, without receiver
      Digital satellite dish, 80 cm, Twin LNB
      Fabrics & Furniture finishes
      Fabric combination: Gomera
      Textile leather-/ fabric combination: Marquis
      Leather / fabric combination: Moreno
      Leather-/ Fabric combination: Tenerife
      Leather: Grigio
      Carpet: Laguna
      Packages
      Equipment Line Premium
      Autonomy package Lithium XL
      Arctic package
      Winter package
      TÜV approval / CoC
      TÜV approval / CoC
      Hymer Original Services
      12 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to
      24 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to
      36 months new vehicle warranty for new motorhomes with a technically permissible total mass of up to 7.5 to
      Hymer Original Parts
      Replacement cartridge for water filter
      Herb pot
      Spice rack
      Tablet holder
      Parkpilot - rear parking aid
      Aluminum louvre cassette for panorama tilting skylight, 80 x50 cm
      Kitchen roll holder
      E-Bike Charger
      Bike Carrier for two bikes
      Universal shelf
      Temperatur- und Luftfeuchtigkeitssensor
      Kontaktsensor
      Reifendrucksensor
      Gaslevelsensor
      Stahladapter für Alu-Gasflaschen
      Sun protection mat
      External insulation
      Cot
      Seat console safe passenger seat
    • Xperience package ML-T
      Exterior cab color: Tenorite gray (Metallic)
      Awning incl. dimmable LED lights, black housing, 400 x 250 cm
      Active Distance Assist DISTRONIC+ incl. steering wheel multifunction buttons
      Comfort L-shaped seating group with lounge cushions, longitudinal / transverse sliding table and 2 built-in 3-point belts
      Design graphics Xperience
      Fog lights with cornering light
      Traffic Sign Assist
      Bed conversion for comfort L-shaped seating group incl. additional cushion and lowerable table involving the cab seat
      Sleeping system with cup-slatted bed frame for rear bed(s)
      Additional cushion between the longitudinal single beds incl. integrated comfort access
      4 cushions
      32" TV bracket
      32" Smart LED-TV with built-in speakers, remote control, DVD drive, HYMER Smart-Multimedia system (DVB-T / C, DVB-S2) incl. receiver
      10.25" MBUX Multimedia system with reversing camera, Voice Control, touchscreen incl. SatNav and smartphone integration
      HYMER Connect sensor package incl. 1x gas level sensor, 1x temperature sensor and 2x contact sensor
      Comfort habitation door with window, blackout blind, integrated waste bin as well as 2-way lock
      16'' Alloy rims (black) with All Season tires
      Leather steering wheel (automatic transmission only)
      9G-TRONIC automatic transmission incl. Hold function
      DAB Radio

    a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.

    *The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
    Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.


Design your vehicle in our configurator

In our configurator, you can design the HYMER ML-T Xperience to perfectly suit your taste. Discover all of the design variants and find your dream configuration.
To configurator

Equipment

With its extensive off-road equipment, the Hymer ML-T Xperience already brings everything you need for your next adventure. If that is not enough, there are further equipment options for even more comfort and individuality.

    • Active Distance Assist including multifunction steering wheel keys

      DISTRONIC PLUS Driving Assist (including Active Brake Assist) helps to keep a safe distance from the vehicle in front - and brakes automatically in an emergency. It minimises the risks of short safety distances, abrupt traffic stops or inattention.

    • Convenient 7 inch touch display

      The 7 inch touch display enables convenient control and monitoring of important vehicle functions and components. From the charge status of the body battery, the display of the fresh and grey water tanks to the heating control.

    • Gently closed, securely locked

      All overhead lockers and drawers feature a soft-close function for gentle closing, as well as a secure locking system.

    • Perfect privacy

      The concertina cab blinds made from a premium pleated fabric protect you from prying eyes and excessive sunlight during summer time.

    • Entertainment and navigation included

      The MBUX multimedia system including reversing camera with high-resolution 26 cm (10.25 inch) touchscreen offers a wide range of communication and infotainment possibilities and also features fast hard disk navigation with clear 3D map display and smartphone integration.

    • TV on the move

      Thanks to the optional 32" TV and the integrated HYMER Smart Multimedia System including Bluetooth connection, you can enjoy a real home cinema feeling even when you’re on the road.

    • Plenty of space to enjoy

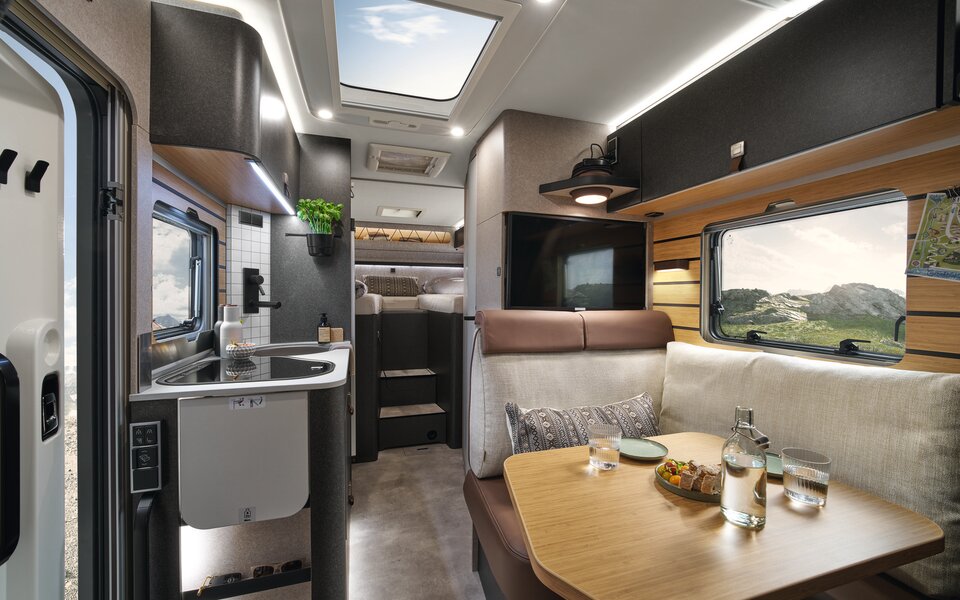

      There’s room in the spacious and comfortable L-shaped seating area, which has lounge cushions and a large table that can be moved lengthways and crossways.

    • Efficient lighting

      The interior lighting throughout the vehicle features LED technology as standard. This cuts energy consumption by 75% and gives you hours of extra battery life. Since LEDs don’t get hot, this also improves fire and accident safety.

    • Pleasantly controlled climate

      The semi-automatic climate control TEMPMATIC ensures a pleasant temperature inside the vehicle. The system simultaneously dehumidifies the air, which prevents misting of the windows from inside. In addition, an integrated particle filter protects against pollen and dust.

    • 3-burner hob – perfect for the hobby chef

      The user-friendly and easy-to-clean 3-burner hob can also be used to conjure up more elaborate menus in your vehicle's kitchen. The glass lid acts as a flame guard in the kitchen when raised.

    • Automatic headlights

      The automatic headlight control or headlight assist system switches the low-beam headlight on or off according to current light conditions. This provides more comfort for the driver as well as enhanced safety.

    • Double-sided garage access

      The rear garage is equipped with two large garage doors as standard – one each on the left and right side in the direction of travel. This means the garage can be easily loaded from both sides. This guarantees optimal access, and you can reach your luggage from the outside at any time.
    • Structure of the PUAL-foamed outer wall with aluminum inner and outer skin of the HYMER motorhome in 3D optics

      Optimal insulation thanks to PUAL technology

      The PUAL-foamed walls with aluminium inner and outer skin are an important component of the vehicle’s durable high-tech bodywork. The excellent insulation of the closed-cell PU foam guarantees pleasant temperatures throughout the year and low gas consumption in winter.

    • Optimal protection from below

      The nearly indestructible GRP underbody makes the motorhomes virtually immune to damage caused by inclement weather. Stone damage, grit and dirt are likewise kept at bay – a solid foundation for the service life of your entire motorhome.
    • Mercedes based HYMER motorhome cockpit with various high-tech assistance systems

      Stay on track even in windy conditions

      The Crosswind Assist is fitted as standard. It recognizes lane deviations caused by strong crosswinds and supports the driver with automatic braking interventions to keep in lane.
    • The rear garage of the Hymermobil is open on both sides and loaded with a ball, shoes, shopping basket and suitcase

      All the room you need

      The large, easy-access garage can carry a maximum payload of 350 kg as standard – a 450 kg version is available as an option.

    • LED rear lights in a striking design

      The multifunctional rear lights include LED hybrid technology and a signature design featuring the three bars of the HYMER logo – and provide excellent visibility even in challenging conditions.

    • Privacy and mosquito protection in one

      All windows in the body construction are equipped with blackout blinds and mosquito nets. This ensures privacy and keeps out uninvited guests such as mosquitoes, moths and flies.

    • Be seen by others

      The high-visibility daytime running light ensures safety even in poor light conditions. The daytime running lights mean other traffic participants spot your vehicle more easily during the day, reducing the risk of accidents caused by failure to see you.
    1 / 19

    • Intelligent lighting, for a relaxing atmosphere

      With the pendant luminaire, which can optionally be used as a downlight, ceiling floodlight or table luminaire, as well as an ambient reading light that can be flexibly mounted onto the multifunctional rails, the right lighting is guaranteed for every scenario.

    • Innovative energy system: HYMER Smart Battery System 2.0

      With the HYMER Smart Battery System 2.0, the self-sufficiency time of your vehicle is extremely increased. Perfectly suited for customers who love a lot of independence and like to be self-sufficient.

    • More power on the road

      The controlled solar installation supplies 2 x 95 W and thus makes you even more independent on the move – for greater freedom and self-sufficiency.

    • Water filter for fresh water system

      Enjoy longer independence, safety and pleasure with the water filter for your motorhome: By filtering bacteria, dirt and chlorine as well as odors, you can enjoy drinking water anywhere and at any time.

    • See and be seen even better

      The high-performance LED headlights increase safety at night. They provide extra visibility thanks to their wide light distribution, low energy consumption and light colour, which is similar to daylight.

    • Under power

      The inverter converts the 12 V battery voltage into 230 V alternating current so that you can operate your 230 V appliances (coffee machine, toaster, hairdryer, etc.) while on the road without a shore power connection.

    • For even more TV entertainment on the move

      For even more entertainment on the move, the sleeping area can be equipped with a second, 22-inch LED TV. The TV features built-in speakers, a DVD drive, DVB-T/C, DVB-S2 and the HYMER Smart-Multimedia System with Bluetooth.

    • Easy gas bottle replacement

      The gas bottles are housed securely and accessibly in an exterior compartment. Changing the gas bottles couldn’t be easier thanks to the practical sliding shelf.

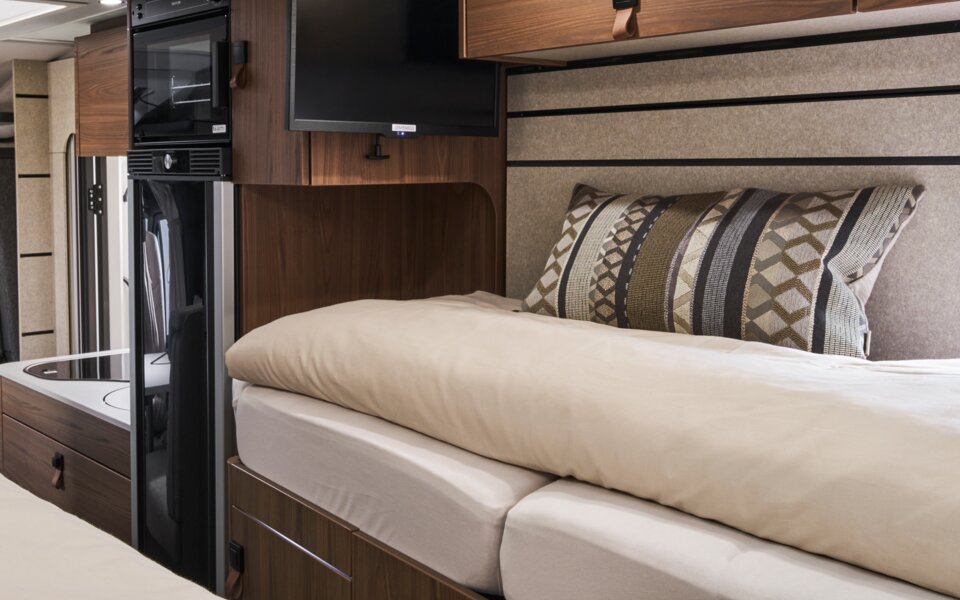

    • XXL bed with extra-long bed surface

      The XXL bed available for specific layouts brings with it an extension of the lying surface on one side. This creates a longer bed and still leaves a semi-high wardrobe as well as a linen compartment.
    1 / 9
    • A battery system block from BOS consisting of two LiFePo4 lithium batteries.

      Autonomy package Lithium XL

      • HYMER Smart Battery System 2.0 - extension: 2nd habitation battery module 80 Ah LFP incl. additional charger (160 Ah overall capacity)
      • HYMER Smart Battery System 2.0 - extension: 3rd & 4th habitation battery module - 2 x 80 Ah LFP (overall capacity 320 Ah)
      • Inverter 12 V to 230 V, 1,800 W with network priority circuit

    • Arctic package

      • Gas-Warm water heating incl. floor and garage floor heating
      • Heat exchanger for warm water heating
      • Heat exchanger pre-installation, Mercedes-Benz
      • Comfort habitation door with window, blackout blind, integrated waste bin as well as 2-way lock
      • Insulated partitioning curtain for cab, double-layered sewn
      • Insulating mat for cab footwell, supplied loose
      • Auxiliary heating (supports heating when heating up the vehicle)
      • Checker plate floor in the rear garage
    1 / 2

    • Furniture finish: Native Bamboo

    • Fabric combination: Indiana

    • Textile leather-/ fabric combination: Marquis

    • Fabric combination: Gomera

    • Living space in the HYMER ML-T CrossOver: dark leather seating area, laid table, panoramic roof vent, driver's seats and driver's cab

      Leather: Grigio

    • Leather / fabric combination: Moreno

    • Carpet: Laguna

    1 / 7

HYMER brochures and price lists

Download a current HYMER brochure and price list and be inspired by our innovative and comfortable motorhomes and campervans
HYMER product brochure and price lists for download

Further offers and information

Discover the technologies in your HYMER

Our technology - your plus in comfort: you are entitled to a vehicle of the highest standard - whether it's comfort, quality, safety equipment, extensive features or value retention. Discover which technologies & innovations will enhance your next journey.
To Technology & Innovation

Be inspired

We produce meticulously designed vehicles – for maximum comfort on the road to provide unforgettable adventures. Find inspiration in our travel stories.
To the travel stories

Your local partner

Find out more about first-class “Made in Germany” quality. Experience the premium finish. Give the beds, seats and engine a test drive. With more than 300 HYMER service partners and dealers worldwide, someone is always nearby.
To dealer search
Download brochures
Dealer search
Configurator
Newsletter

Models and Technology

Travel & Enjoy

Service

Company

Learn more about HYMER Original Parts & Accessories:
https://www.hymer-original-parts.com/en

Caravans in premium quality:
https://www.eriba.com/de/en

Discover our travel portal:
https://www.freeontour.com/en

© 2024 Hymer GmbH & Co. KG
